Optris Xi 640 Industrial USB Infrared Camera

Name: Optris Xi 640 Industrial USB Infrared Camera
Brand: Optris
SKU: 30436
Availability: InStock

£5,270.25

The Optris Xi 640 is a compact USB infrared camera for industrial use. High-resolution images (-20°C to 900°C) for precise temperature monitoring. Rugged, waterproof design.

Technical Details

Industrial USB infrared camera
Compact and waterproof
Motorised focus
High pixel resolution of 640×480
Spectral range: 8 to 14µm
Frame rate: 32Hz
Long-wavelength infrared range
Temperature range(s): –20°C to 900°C

Field of View

Clear

Data Sheet

SKU: N/A Categories: Industrial Thermal Imaging Cameras, Optris Xi Compact Line Thermal Imaging Cameras

Need Some Help?

01628 778688 sales@processparameters.co.uk

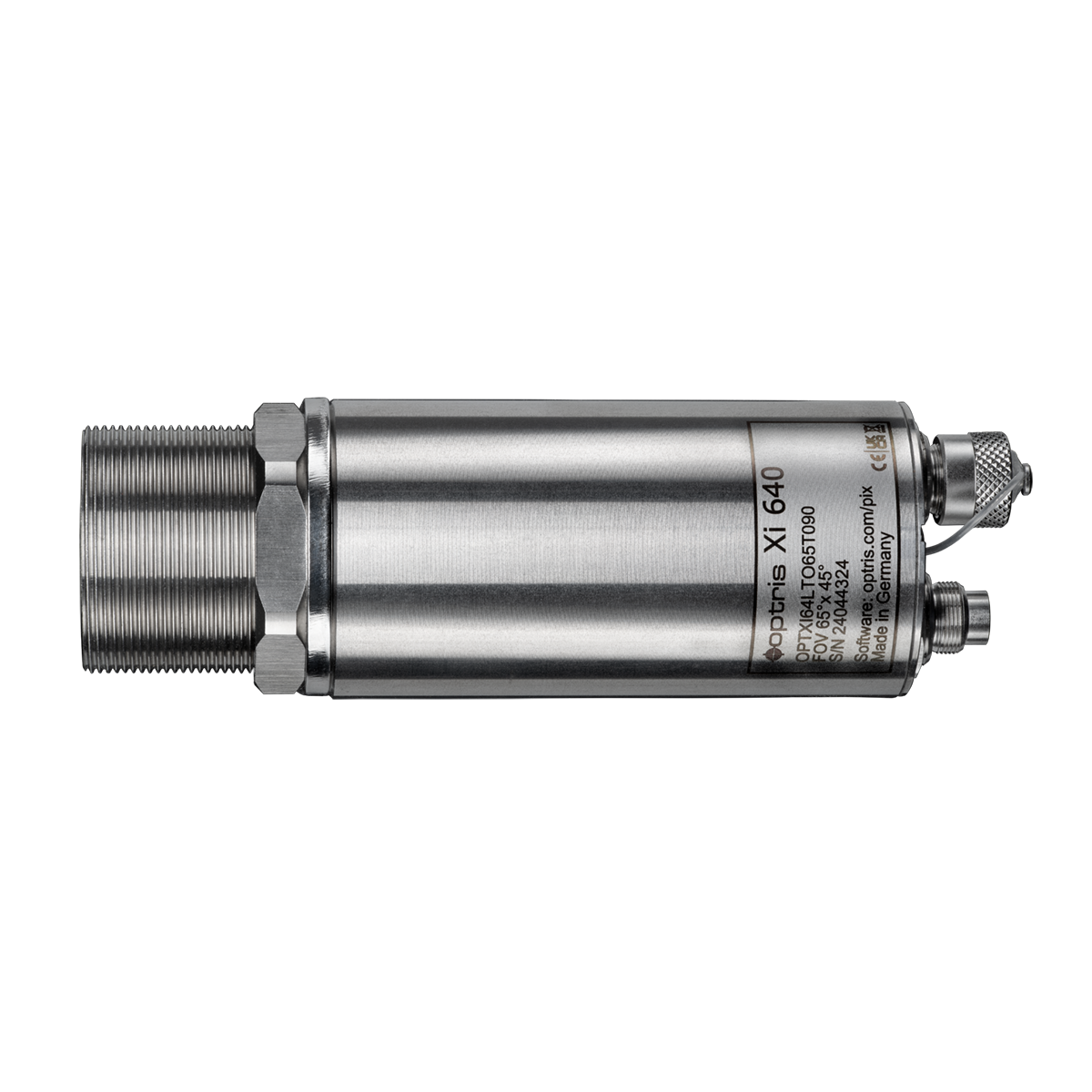

Optris Xi 640 USB Thermal Imaging Camera

The Optris Xi 640 is an advanced industrial USB infrared camera offering high-resolution thermal imaging with 640×480 pixel resolution. It boasts a wide temperature range from -20 to 900°C and an exceptional thermal sensitivity of 80mK.

Operating in the long-wavelength infrared spectrum, this German-engineered device is designed for precise surface temperature analysis in industrial settings. Its compact, rugged, and waterproof design makes it suitable for demanding environments.

The Xi 640 features USB configuration, and motorised focus, and combines innovation with affordability, making it an excellent choice for non-contact thermal imaging applications.

Key Technical Specifications

Image Resolution: 640 x 480 pixels
Temperature Measurement Range: -20°C to 900°C
Thermal Sensitivity: 80 mK
Spectral Range: 8 – 14 µm
Imaging Speed: 32 Hz
Frame rate: 32Hz
Focal Length Options: 7.7 mm, 12.7 mm, 20 mm
Accuracy: ±2°C or ±2% (whichever is greater)
Connectivity: USB 2.0 (GigE option available)
Operating Temperature: 0°C to 50°C
Protective Rating: IP67
Power Source: USB
Certifications: CE, UKCA, RoHS, EMC, IEC 60068-2-17/6/64

Take a look at the datasheet for the full technical details.

What’s In The Box

Process imager Xi 640 with lens (selectable)
USB cable (1 m)
Cable for output/input (1 m) incl. terminal block

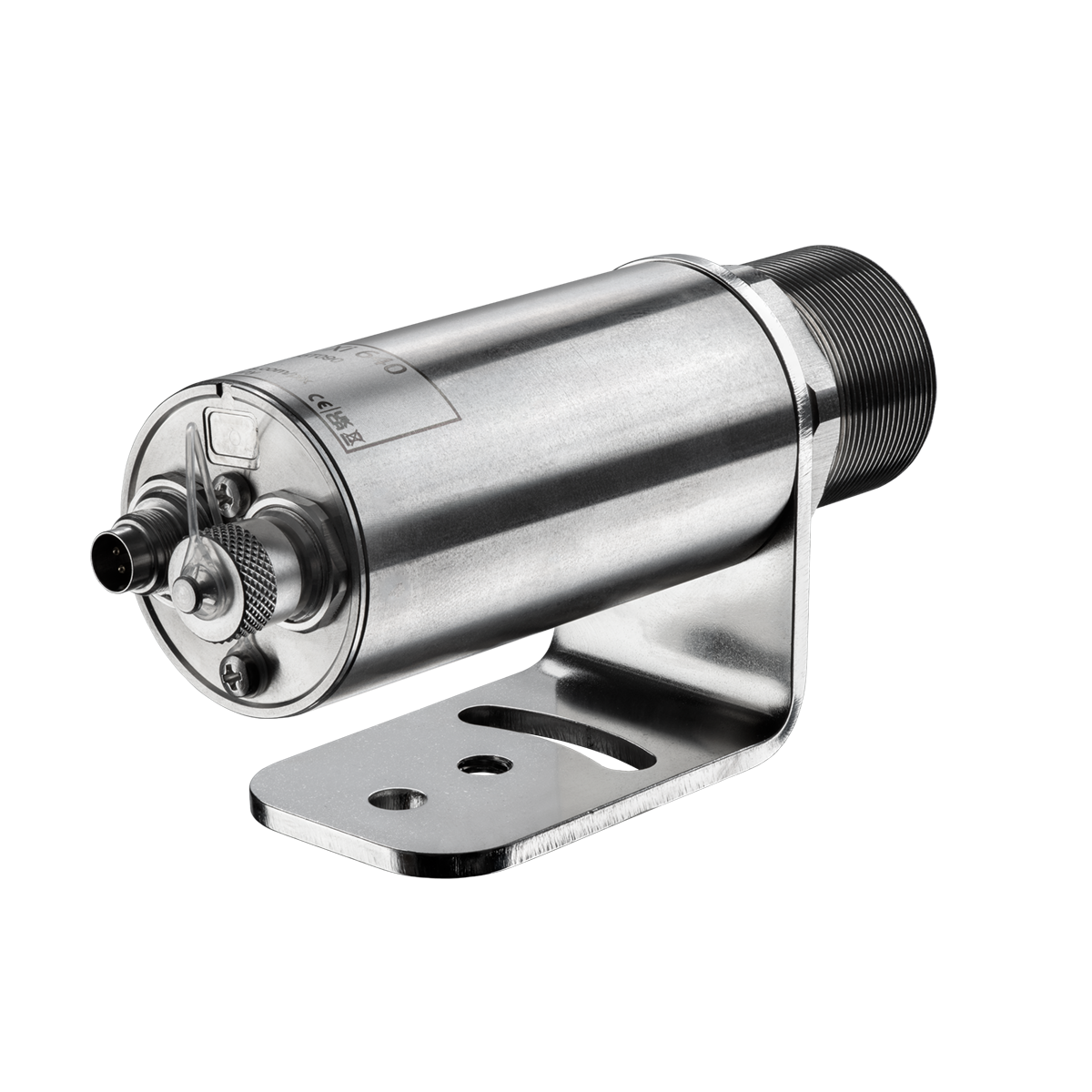

Mounting bracket with nut
Software package Optris PIX Connect
Quick Start Guide

Applications

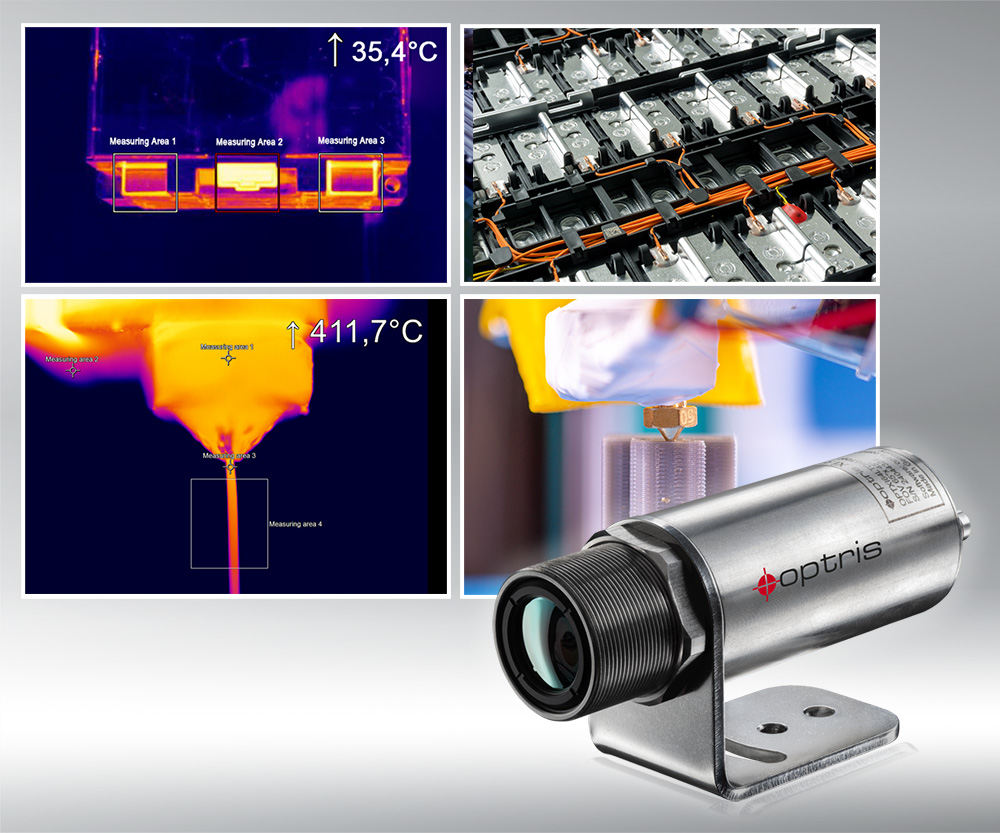

The Xi 640 is an advanced USB high-resolution IR camera and is often used in fixed settings to monitor production and manufacturing processes.

Browse our full range of infrared pyrometers and thermal imaging cameras from Optris.

If you have any queries or need help finding the right infrared camera for your application, contact our technical team.

Brand	Optris
Product Family	Xi Series
USB Interface & Software	Supplied with USB Interface
Cable Length	1m, 3m, 5m, 10m
Field of View	22° x 17°, f=20mm, 36° x 26°, f=12.7mm, 65° x 45°, f=7.7mm

What variations are available for the Optris Xi 640?

The Optris Xi 640 offers a range of variations to accommodate diverse application needs. It is available with three temperature range options: -20 to 100°C, 0 to 250°C, and 150 to 900°C.

Users can choose from three lens options with different fields of view: 22° x 17° (f = 20mm), 36° x 26° (f = 12.7mm), and 65° x 45° (f = 7.7mm). The camera comes with standard USB 2.0 interface, with an optional USB to GigE (PoE) conversion available.

Cable length options include 1 m (standard), 3 m, 5 m, and 10 m. For process integration, the standard configuration includes one analogue output and one input (analogue or digital), while an optional Industrial Process Interface (PIF) provides additional inputs/outputs and relays.

These variations allow users to customise the Optris Xi 640 to best fit their specific thermal imaging requirements.

What are the benefits of the Optris Xi 640 USB infrared camera?

The Optris Xi 640 USB infrared camera offers numerous benefits for industrial thermal imaging applications. Its high-resolution 640 x 480 pixel sensor provides detailed thermal images, allowing for precise temperature measurements across a wide range (-20°C to 900°C).

The camera's compact design, coupled with its rugged construction and IP67 rating, makes it suitable for challenging industrial environments. The motorised focus enhances usability, allowing for sharp images without manual adjustments. With a fast 32 Hz frame rate, it can capture rapid thermal changes, while the "Auto spot finder" function enables accurate temperature measurement of moving objects.

The camera's versatility is further enhanced by its USB connectivity, free PIX Connect software, and various mounting options, making it an excellent choice for mechanical engineering, OEM applications, and other industries requiring reliable, non-contact temperature monitoring.
