Optris CSmicro 2M for High Temperature Metals

The CSmicro 2W 2M is a miniature infrared temperature sensor designed for the measurement of the temperature of metals at high temperatures from 250 to 1600°C. The short wavelength sensitivity of the sensor enables measurements to be taken accurately where the emissivity is low or variable.

Technical Details

Temperature range: 250 to 800°C (2ML) or 385 to 1600°C (2MH)
Spectral range: 1.6 µm
Response time: 8 ms
Compact sensing head with cable electronics
Adjustable signal processing
Optical resolution
- 40:1 (2ML)
- 75:1 (2MH)
0.1 to 1.1 emissivity
5 to 30VDC power supply
IP65 NEMA-4 rated

Prices from £359.00

Categories: Compact Series, IR Metal Temperature Sensors

Need Some Help?

01628 778688 sales@processparameters.co.uk

Description
Additional information

Infrared Thermometer for Temperature Measurement of Metals

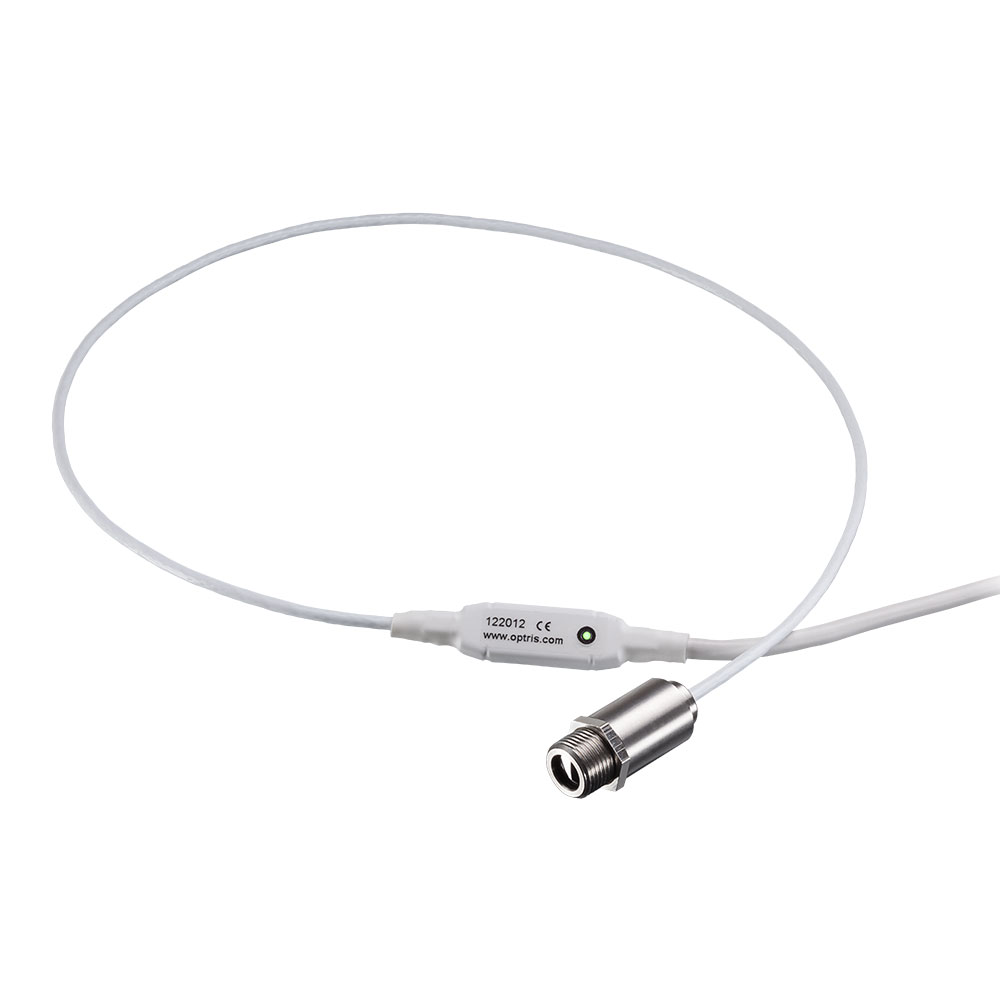

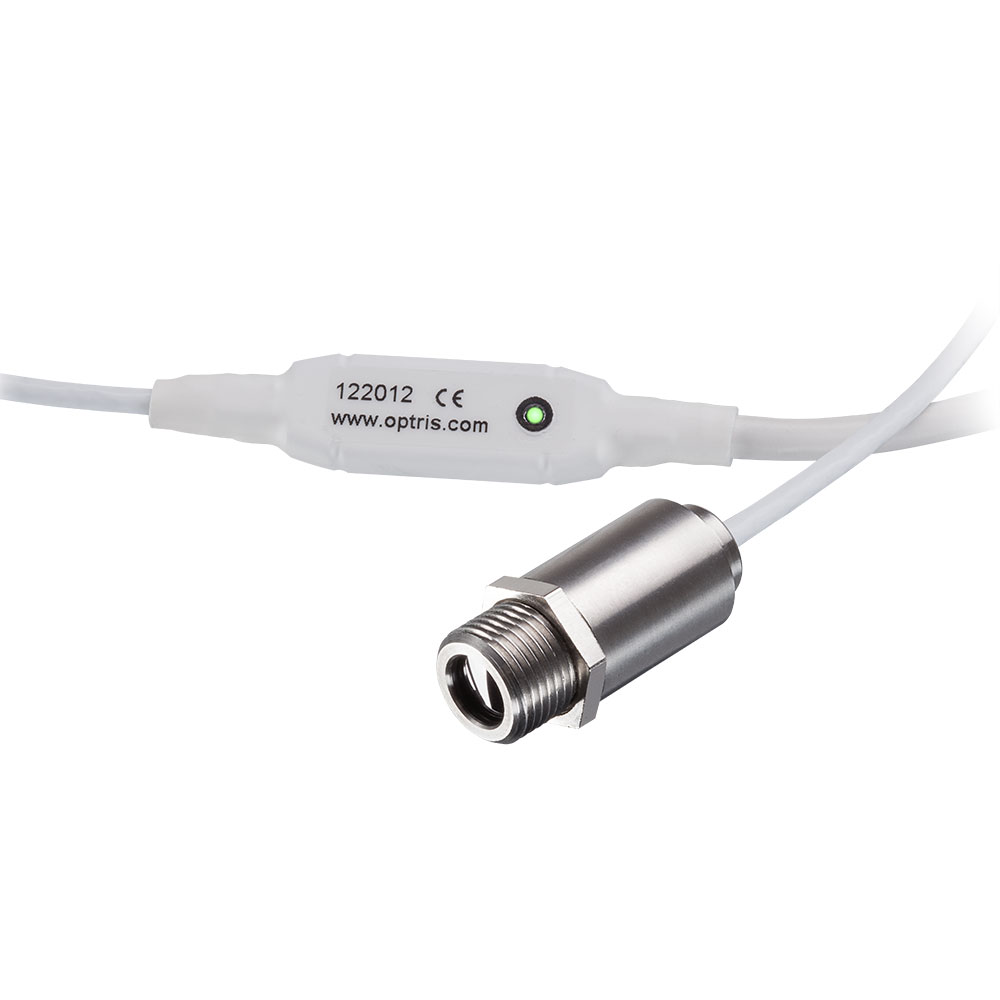

The CSmicro 2M has the smallest sensing head of any infrared sensor in the world making it ideal for applications where space is at a premium. The electronics for the sensor are mounted in a discrete moulded pod on the cable allowing the sensing head to be extremely small at just 14mm diameter x 28mm long.

Features of the IR Pyrometer

Temperature range: 250°C to 1600°C
Size: M12x1, 28 mm long, stainless steel housing
Scalable 4-20 mA or 0-10V analogue output / additional simultaneous alarm output
Usable up to 125°C ambient temperature without cooling (sensing head)
Green LED alarm indication, aiming support, self diagnostic or temperature code indication
Electronics build in cable
Short circuit and polarity reversal protection
Adjustable signal processing
Optional USB programming interface and software
Wide power range: 5-30 V DC

What’s In The Box

IR pyrometer
Mounting nut
Standard connection cable
Manual

Optris CSmicro 2M Additional Information & Software

Optris CSmicro 2M industrial infrared temperature sensor can be used with an optional USB interface and free Compact Connect software for configuring the sensor by PC and also recording temperature measurements instead of using traditional analogue or thermocouple outputs. The infrared temperature sensor and pyrometers from Optris can now also be easily operated from a smartphone using the IRmobile App for Android.

In addition, pyrometers from Optris can now also be easily operated from a smartphone using the IRmobile App for Android.

Calibration and a wide range of accessories are also available to purchase for your Optris CSmicro 2M temperature sensor.

If you have any questions, contact us for further information, or to talk to one of our experts about which pyrometer is best for your application.

Areas of Application for The Pyrometer Optris CSmicro 2M

With a wavelength suitable for metallic surfaces, the IR pyrometer Optris CSmicro 2M reliably measures metals in temperatures of up to 1,600°C.

The IR thermometer is especially popular in metal processing industries and is employed for welding, soldering, re-forming, induction heating or sintering.

Additional areas of application are surveillance of rolling trains, tube-welding processes and forging-die forming.

Brand	Optris
Product Family	CSmicro Series
