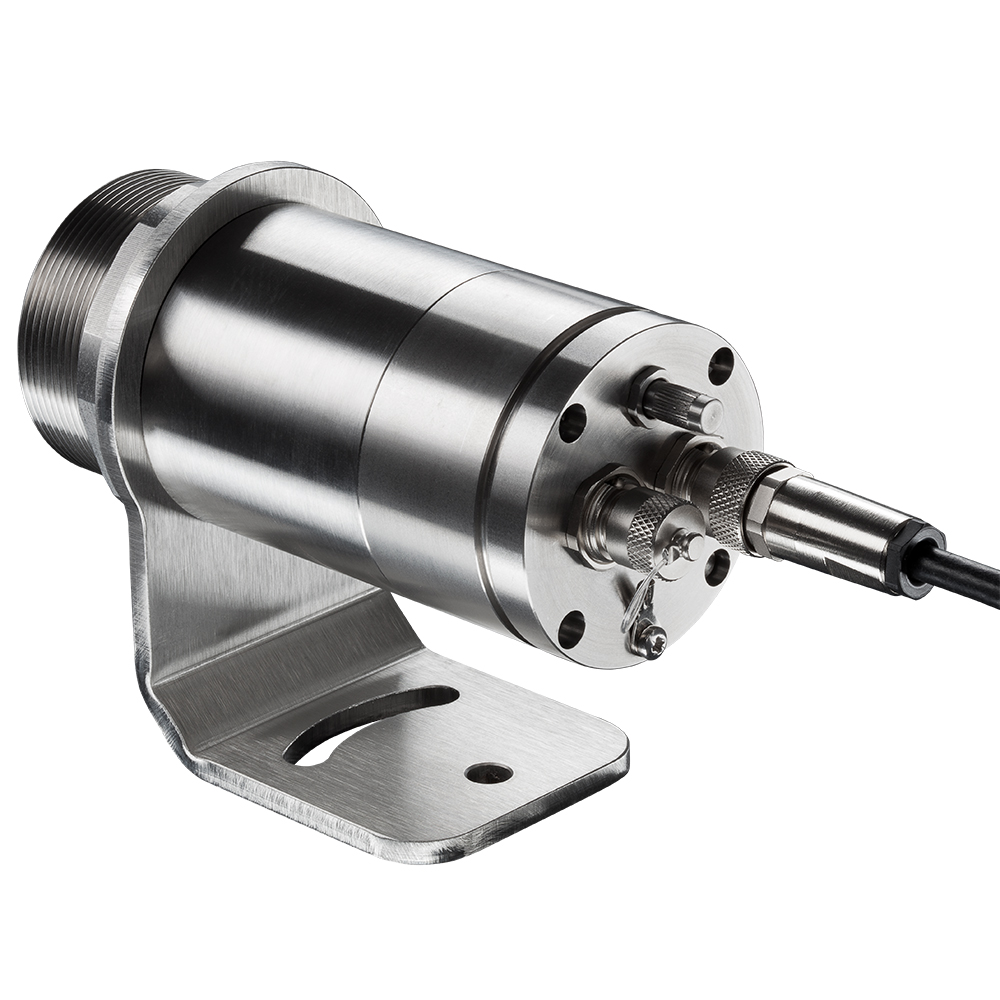

Optris CSvideo 2M Infrared Temperature Sensor for Metals
The Optris CSvideo 2M is a fixed infrared pyrometer with video designed for the low temperature measurement of metals in hard to reach areas. The IR thermometer has a temperature measurement range of 250 °C to 1,600 °C.
Technical Details
- Temperature range: 250 °C to 1,600 °C
- Optical resolution (90% energy): 150:1 (2ML), 300:1 (2MH)
- Spectral range: 1.6 µm
- Response time: 10 ms
- Ambient temperature: -20°C … 70°C (50°C with laser ON)
- Storage temperature: -40°C … 85°C
- Output: 4 – 20 mA
- 5 to 28VDC power supply
- 0.1 to 1.1 emissivity
- Environmental rating: IP 65 (NEMA-4) front mountable at vacuum processes (up to 10-3 mbar)
Prices from £1,127.25
Optris CSvideo 2M IR Pyrometer Through the Lens Video Aiming for Metals

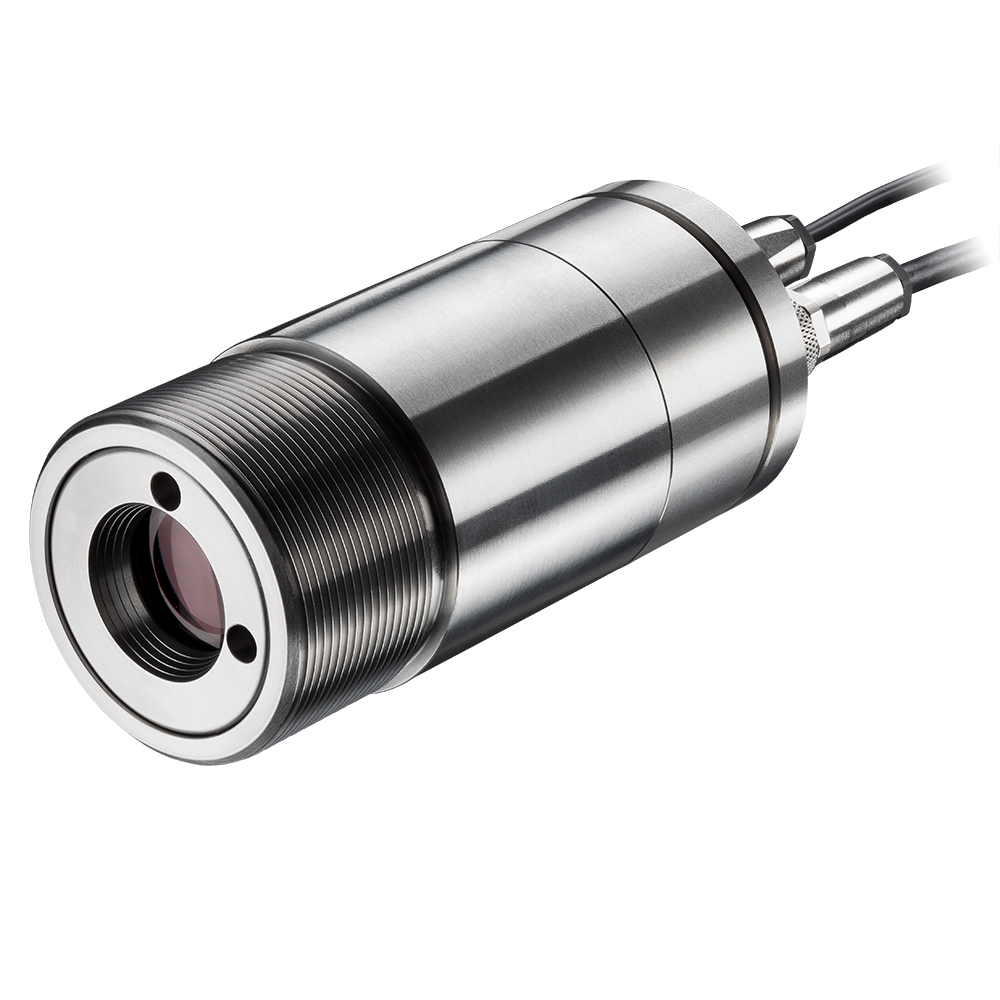

With the Optris CSvideo 2M video pyrometer, precise temperature measurements are made even more convenient with its built-in video sighting feature.
This integrated video sighting provides an additional visual aid for accurate targeting. The pyrometer is further enhanced by the inclusion of a patented crosshair laser, allowing for reliable and precise adjustment of the measuring field, especially in challenging or inaccessible areas.
Even in situations where the laser visor becomes invisible due to extreme heat, the Optris CSvideo 2M ensures reliable and precise measurements, making it a reliable choice for various applications.
A selection of optics allows measuring spot sizes to be as small as 0.5mm with the CF2 selection. Alternatively, the SF optics with an optical resolution of up to 300:1 give small spot sizes even at large distances. The sensor has a wide measuring range of 250 to +1600°C and an industry-standard 4-20mA output.
Application StoryWhat’s In The Box
- CSvideo 2M Pyrometer
- Mounting nut
- ACCTLFB mounting bracket
- 5m USB cable
- CompactConnect software
- Manual
Additional Information about Optris IR Pyrometer
Optris CSvideo 2M video pyrometer can be used with an optional USB interface and license-free Compact Connect software to configure the sensor by PC and record temperature measurements instead of traditional analogue or thermocouple outputs. The infrared temperature sensor and pyrometers from Optris can now also be easily operated from a smartphone using the IRmobile App for Android.
A temperature calibration service, as well as a full range of accessories, are available to purchase for the Optris Compact infrared pyrometers and thermal imaging cameras.
Take a look at all of our Optris infrared sensors and thermal imaging camera products.
Areas of Application
The Optris CSvideo 2M has been specially designed with a short-wave spectral range of 1.6 µm and is the ideal video pyrometer for metal processing industries. The IR temperature sensor measures metals and ceramics precisely and reliably.
| Brand | |
|---|---|
| Product Family | |
| Environmental Rating |
