UPS-HSR USB Pressure Sensor with High Sample Rate Logging

UPS-HSR – USB Pressure Sensor With High Sample Rate Logging

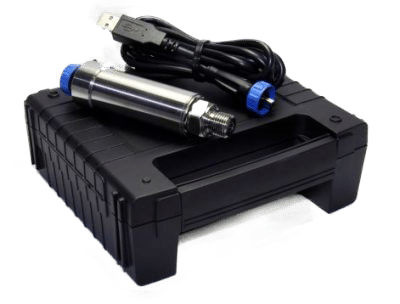

This high-speed pressure sensor connects to a computer via USB to capture pressure readings at rates up to 1000 samples per second. Offering versatile measurement ranges from -1 to 5000 bar, it comes equipped with a 2-meter cable, software and carrying case.

Available pressure port fittings include G1/4 male, 1/4 NPT male up to 1500 bar, or autoclave F-250-C female for higher thresholds. Quickly record precise pressure data with customisable duration and frequency.

Specifications

• Sensor technology: Silicon-on-Sapphire (SoS)
• Output: USB 2.0 compatible
• Supply voltage: 5V dc (from USB port)
• Pressure reference Gauge (standard), Absolute (selectable in the software)
• Pressure ranges
  Std. range: -1 to 2.5 bar; 0-16 bar; 0-100 bar; 0-400 bar; 0-1,000 bar; 0-1,500 bar;
  High range: 0-2,000 bar; 0-4,000 bar, 0-5,000 bar
• Engineering units: bar, mbar, psi, MPa, Pa, mH2O, mmHg, atm, kg/cm2
• Safe over pressure: 1.5x up to 1,000 bar; 1.2x for up to 5,000 bar;
• Accuracy (NL&H): ≤ ±0.15 % of span BFSL
• Sampling rate: User selectable to 1,000 samples per second (1,000 Hz)
  Resolution: 21 bits for ≤5 Hz; 16 bits for >5 – 1,000 Hz
• Ambient temperature: -20 °C to +85 °C (-4 °F to +185 °F)
• Media temperature: -50 °C to +125 °C (-58 °F to +257 °F)
• Storage temperature: +5 °C to +40 °C (+41 °F to +104°F)
• Temperature effects:
  ±1.5 %FS total error band for -10 °C to +80 °C.
  Typical thermal zero and span coefficients ±0.015 %FS/ °C
• Media wetted parts: Titanium alloy
• Permissable media: All fluids compatible with titanium alloy
• Electrical connection:
  Mating to USB mini B socket for cable connection to PC.
  Supplied with 2m USB lead rated to IP68 as standard.
• Pressure connection:
  ≤1500 bar: 1/4“ BSP male (G1/4); 1/4“ NPT male
  ≥1500 bar: F250-C (Autoclave)
• Electromagnetic compatibility: EN61326-1, EN61326-2-3 (Laboratory equipment)
• Software compatibility: Windows 7, Windows 8, Windows 8.1 and Windows 10
  Application compatibility: C#, VB, Labview and Excel VBA (api dll library)

Applications and Uses:

• Laboratory, Academic & Research testing
• Hydraulic & Pneumatic pressure logging
• Medical testing/prototyping
• Autoclave / Steriliser validation
• Hydraulic network analysis
• Pressure surge detection
• Leak testing
• Pump & Compressor monitoring
• Aerospace test and research
• Automotive component testing

High Performance Silicon-on-Sapphire Sensor Technology

The sensing technology used in the pressure sensor is Silicon-On-Sapphire (SoS), which produces outstanding performance, accuracy, repeatability and thermal stability. This level of accuracy enables the UPS-HSR to provide resolution with a precision of 1 in 100,000.

This pressure sensor has been designed and developed for ease of use, reliable data collection and real-time monitoring, to cover the majority of applications where a simple interface to a computer is required.

Without the fuss of complicated interfaces, converters, external power supplies and USB driver issues, the USB interface is simply a USB cable that powers the pressure sensor, self-installs logging software on the computer and has automatic recognition of the sensors that connect to the software.

Test Certificate Builder

The software includes a ‘Certificate Generator’ which enables the user to upload their company logo, enter details about the test, site location, date and add a signature.

Whilst running the test in certificate generator mode, markers can be placed along the graph for reporting on significant events or points of interest. Once the test is complete you can freely print the certificates or export the data to Excel or other spreadsheet/database program.
