PRT Indoor Air Temperature Sensor – PPL9-P

£22.50 – £24.50

The PPL9-P PRT air temperature sensor is ideal for use in all heating and ventilation applications such as in offices, server rooms and data storage centres. Pt100 or Pt1000, 3 wire, class A mounted in air temperature enclosure for indoor air temperature measurement.

Technical Details

Air Temperature Sensor
Indoor Temperature Measurement

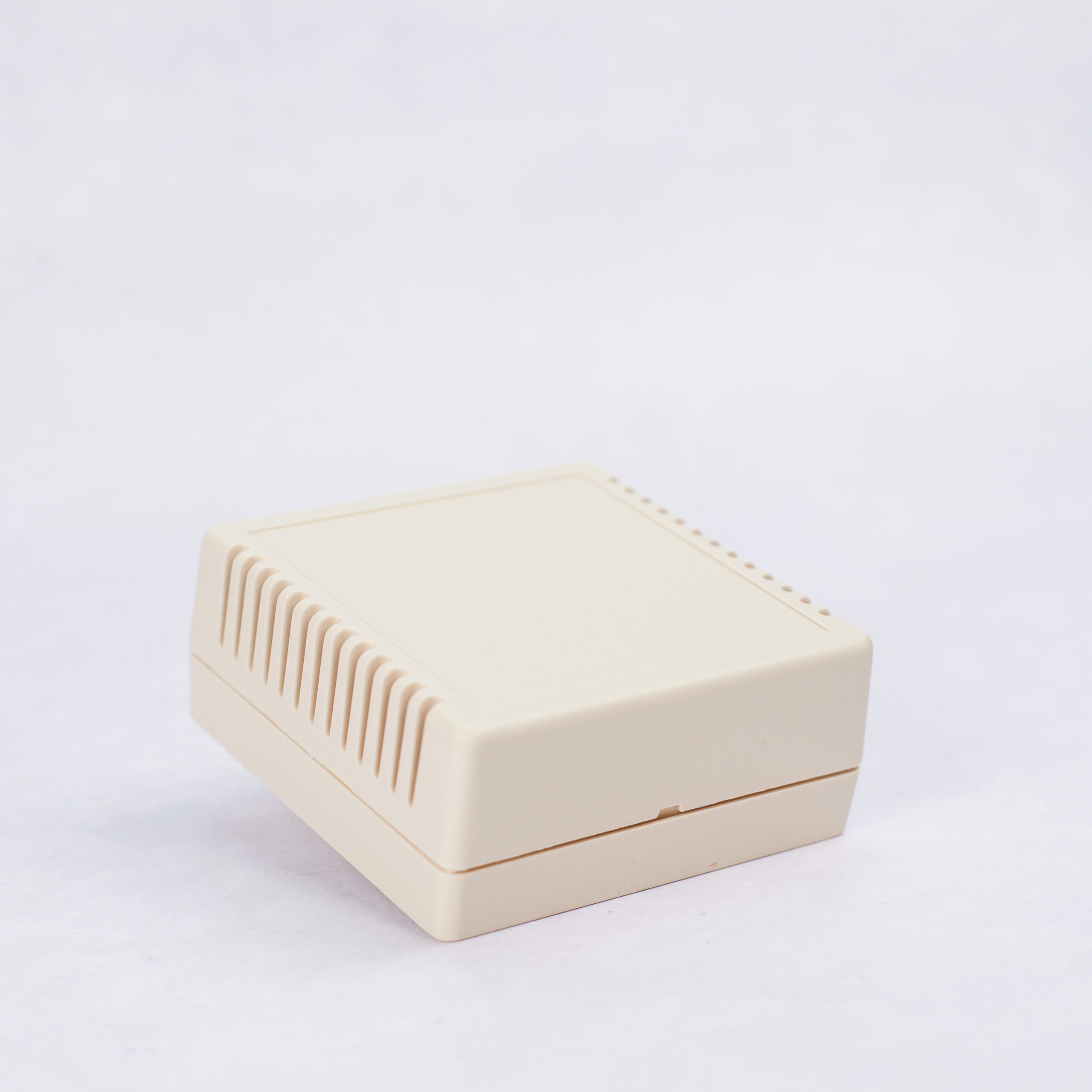

Housed in ventilated ABS Enclosure suitable for Dry Environments
Ideal for HVAC applications
Available with 4-20mA or 0-10V transmitter
Ideal for use in offices, homes and server rooms
Operating Range: -40 to +85°C
Humidity Range: 10 to 90% RH (Non-condensing)
Housing Material: Beige ABS
Tolerance Band: BS EN 60584-2:1993 Class 1 or Class 2
Wiring System: Simplex or Duplex

Sensor Type

Clear

Data Sheet

SKU: N/A Categories: Platinum Resistance Thermometers (RTD Sensor, PRT, Pt100 Sensors, Pt1000), Temperature Probes & Sensors

Need Some Help?

01628 778688 sales@processparameters.co.uk

PRT Air Temperature Sensor for Indoor & Office Use

The air temperature sensor PPL9-P is designed to accurately measure the indoor temperature in various environments. It is housed in a ventilated ABS enclosure, which makes it suitable for dry areas such as offices, homes, and server rooms. The sensor is particularly ideal for HVAC (Heating, Ventilation, and Air Conditioning) applications.

The PRT temperature sensor offers two transmitter options: 4-20mA or 0-10V, providing flexibility for different systems. With its wide operating range of -40 to +85°C, it can effectively monitor temperature fluctuations in diverse settings. Additionally, it can handle humidity levels ranging from 10 to 90% RH without condensation.

The sensor’s housing material is made of beige ABS, which not only ensures durability but also blends well with various interior designs. It adheres to the tolerance band standards set by BS EN 60584-2:1993, offering reliable and accurate temperature measurements.

Installation and wiring are made simple with the choice between simplex or duplex wiring systems. This allows for easy integration into existing setups or new installations.

All PRT sensors are made to order, so it is generally possible to meet all of your requirements.

Specifications

Sensor Type:	Platinum Resistance Thermometer—Pt100 or Pt1000. Other types available—please enquire.
Operating Range :	-40 to +85°C unless otherwise requested.
Humidity Range:	10 to 90% RH (Non-condensing).
Housing Material:	Beige ABS.
Tolerance Band:	Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN
Wiring System:	2, 3 or 4 wire, Simplex or Duplex
Head Options:	A – Nylon Terminal Block B – In Head Transmitter—various types C – Mounting Plate for Customers’ Own Transmitter

Additional Information about the PRT Air Temperature Sensor

As a leading UK temperature sensor manufacturer, we can fit a number of options inside the terminal heads that best fit your requirements. The simplest is a terminal block allowing you to connect directly to the sensor. Alternatively, we can supply temperature transmitters with either a 4-20mA or a 0-10V output.

The PPL9 is also available as a PPL9 thermocouple sensor. We are also able to supply the probe with your choice of thermistor and ambient air temperature sensor.

We offer a comprehensive calibration service and a wide choice of accessories.

Need some help? We design and manufacture a range of temperature sensors for a range of applications. Contact us today for a detailed quotation for your requirements.

Email us at sales@processparameters.co.uk, or call 01628 778788.

Brand	Process Parameters
Sensor Type	Pt100 with Terminal Block, Pt1000 with Terminal Block

What is an Air Temperature Sensor?

An air temperature sensor is a device that measures the temperature of the air in a specific environment. It helps to monitor and control the temperature in places such as offices, homes, and server rooms. The sensor is housed in a protective enclosure and can be connected to other systems for data transmission. It ensures that the temperature is regulated within a desired range, providing comfort and maintaining optimal conditions for various applications.

What is a PRT Temperature Sensor?

A PRT sensor, or Platinum Resistance Thermometer sensor, is a type of temperature sensor that uses a platinum wire to measure temperature changes. As the temperature changes, the electrical resistance of the platinum wire also changes, allowing the sensor to accurately measure temperature in various applications, including industrial and scientific settings.
