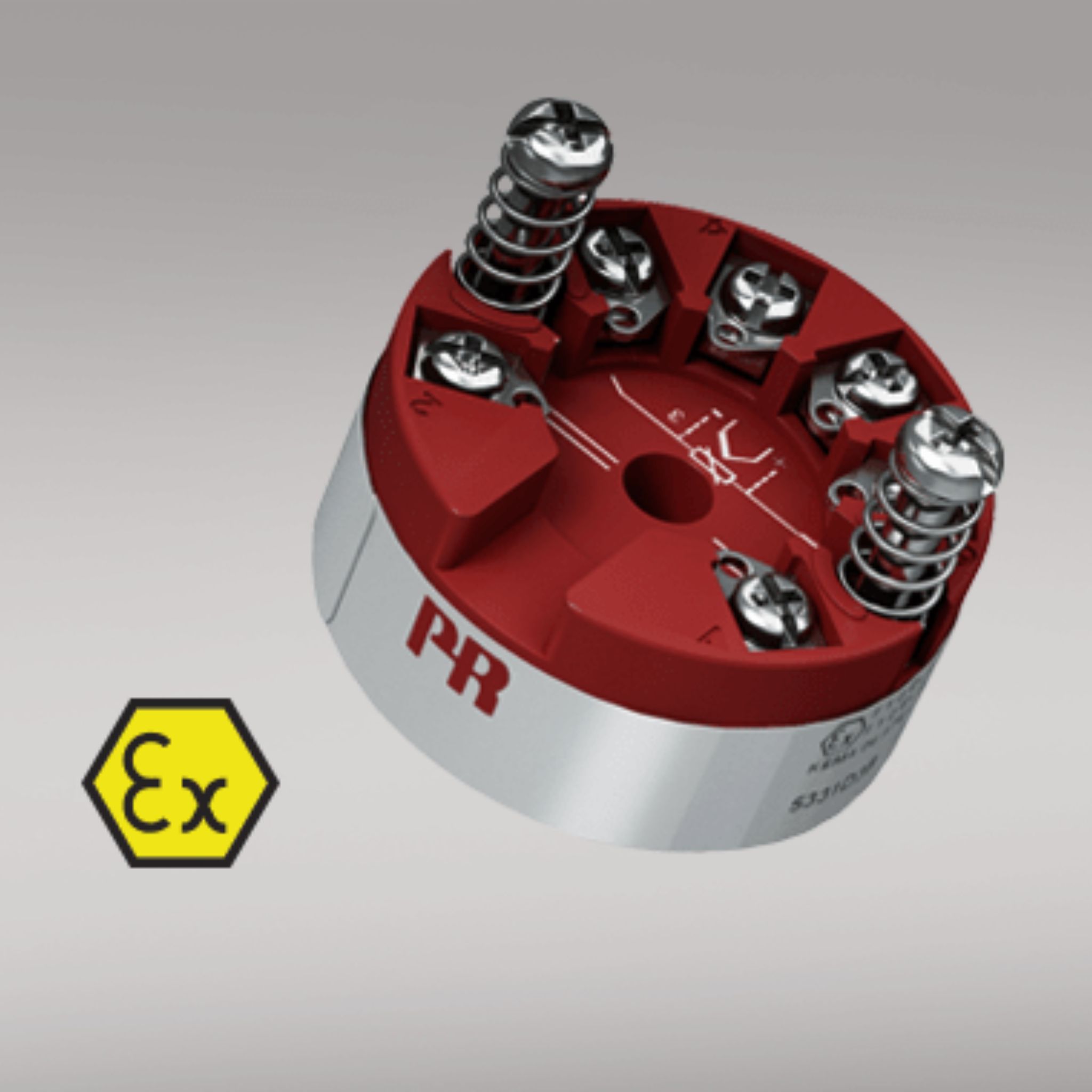

PR Electronics 5331D Universal Input Temperature Transmitter – ATEX Approved

PR Electronics Transmitter

The PR Electronics 2-wire programmable transmitter, model 5331D, accommodates RTD, Thermocouple, Ohm, or Millivolt inputs, ensuring versatility. It delivers high measurement accuracy and supports 2, 3, or 4 wire RTD sensor connections for optimal lead compensation.

Users can program sensor error values, enhancing customisation. Designed for DIN form B sensor head mounting, it is ATEX-approved, ensuring compliance with safety standards in potentially explosive atmospheres. This transmitter offers a comprehensive solution for diverse industrial applications with its precision and adaptable features.

Application

• Linearised measurement of temperature with Pt100…Pt1000, Ni100…Ni1000, or Thermocouple sensor with industry-standard 4-20mA loop powered output.
• Conversion of linear resistance variation to a standard analogue 4-20mA current signal, e.g. from valves or Ohmic level sensors.
• Amplification of a bipolar mV signal to a standard 4…20 mA current signal.

Technical characteristics

• Within a few seconds, the PR5331D transmitter can be programmed to measure temperatures within all ranges defined by the norms.
• The RTD and resistance inputs have cable compensation for 2, 3 or 4 wire connections.
• Continuous check of vital stored data for safety reasons.

Mounting/installation

• For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.

Transmitters from PR Electronics

Process Parameters is a leading UK distributor for PR Electronics. PR Electronics is a reputable Danish company specialising in the development and manufacturing of reliable process control solutions.

With a strong presence in industrial automation, PR Electronics has gained recognition for delivering high-quality products and innovative solutions. Their range includes signal conditioners, temperature transmitters, and communication interfaces for various industries worldwide.

Any questions about our PR Electronics products? Or need help to select a temperature transmitter for your process? Contact us today. We also manufacture temperature probes and sensors custom-built to your exact specifications.

We also offer a comprehensive calibration service and a wide choice of accessories.

Call us at 01628 778788 or email sales@processparameters.co.uk to discuss your needs today.
