Temperature and Humidity Transmitter Temperature Sensor
The Flex2 series comprises versatile weatherproof LoRaWAN transmitters with multiple input options for industrial measurement and monitoring needs. The LoRaWAN radio provides extensive outdoor coverage and connects to standard LoRaWAN systems.

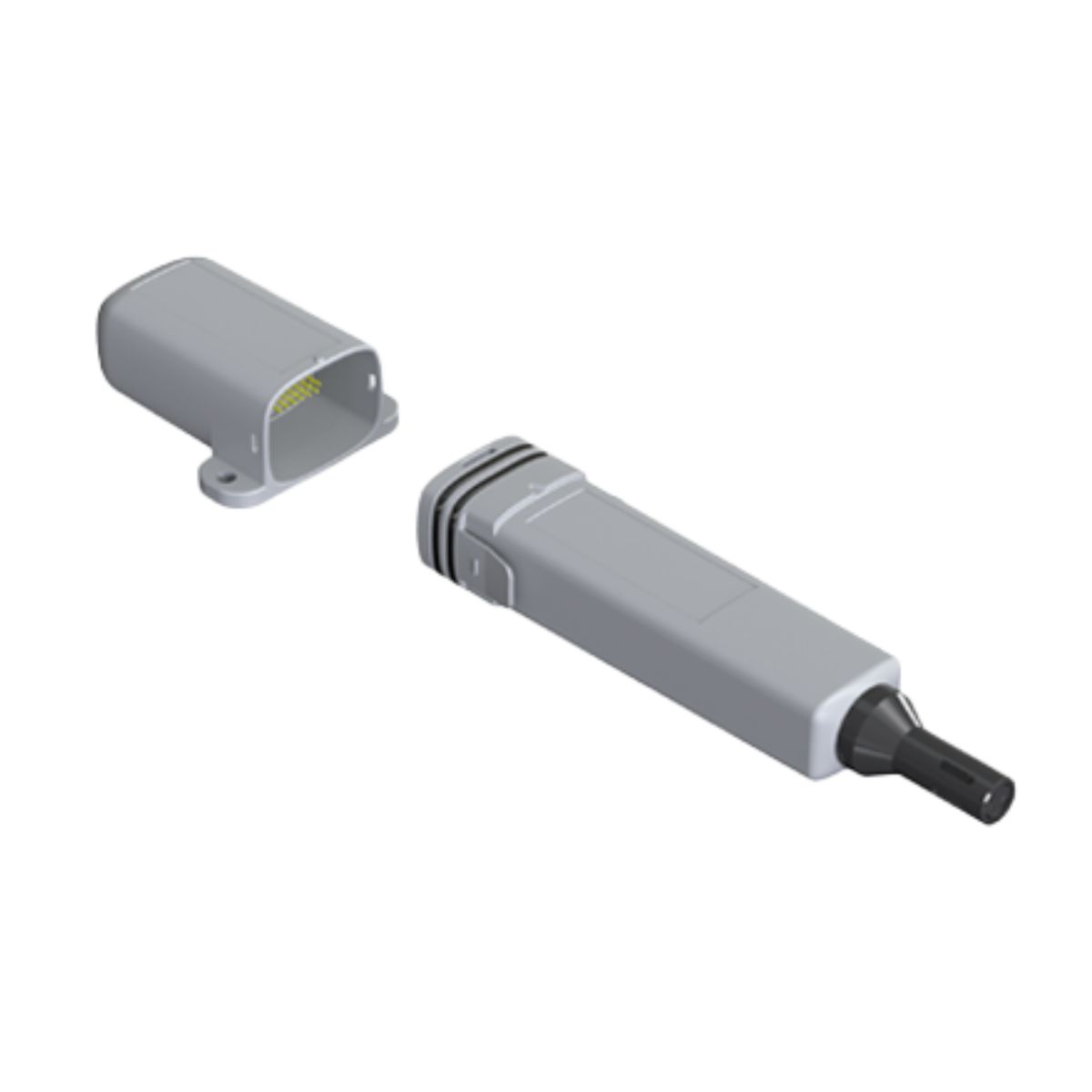

In comparison, the Flex2-T-RH LWEU/LWNA measures ambient temperature and relative humidity using a polymer sensor in the protruding black component. The device is composed of a measuring part and a radio part.
Key benefits include:
- High measurement accuracy and reliability
- Weatherproof
- The LoRaWAN radio offers a long range, especially outdoors, and connectivity to all standard LoRaWAN systems
- Ideal for industrial use
Specifications of the Sensor
Environment
- Operating temperature: -30…+60 °C
- Operating humidity: 0-100 %RH
- Protection class: IP65
- Enclosure material: Plastic (PC+ABS)
Temperature Measurement
- Weight:
Radio modules: 35g
Measurement modules: 70g (slight variation between Flex2 models) - Dimensions: Width 60 mm, depth 32.5 mm, height: 212.8 mm
- Cable gland: M12x1.5
Measuring and Data Transmission
- Measure interval: Configurable: 0…14400s
- Radio: LoRa radio technology with Murata ABZ-093 LoRaWAN modem
- Antenna: Internal
- Frequency band: EU868: 863-870 MHz / US915: 902-928 MHz
- Transmission power: Max +14 dBm E.R.P.
- Range, line-of-sight: Depends on installation location and environment, in good conditions 10 km
Power Supply
- Batteries: 3.6V Lithium Thionyl battery pack
- Typical battery life:
With a good radio link and 5 min measurement interval, typically 5 years
With an average radio link and 30 min measurement interval, typically 5 years
With a bad radio link and 30 min measurement interval, typically 3 years
T-RH Module
- Temperature sensor type: Semiconductor based internal sensor
- Measurement range: -40…+125 °C
- Accuracy: ±0.5 °C
- Humidity sensor type: Capacitive polymer humidity sensor inside a sintered filter
- Measurement range: 0…100 %RH
- Total error band: ±5 %RH over 10…90 %RH and +5…+50 °C
- Accuracy: Typically ±3 %RH over +0…+50 °C
Applications and Uses for the Humidity and Temperature Sensor
The Flex2-T-RH LWEU/LWNA humidity and temperature sensor is suitable for various applications, including industrial measurement and monitoring needs. Its uses include monitoring ambient temperature and relative humidity in industrial environments, contributing to environmental control and process optimisation.
What is a Temperature and Humidity Transmitter?
A temperature and humidity transmitter is a device that measures and transmits data regarding temperature and humidity levels in a given environment. It typically utilises sensors to capture these measurements and transmits the data wirelessly to a monitoring system, allowing for real-time monitoring and control of environmental conditions.
