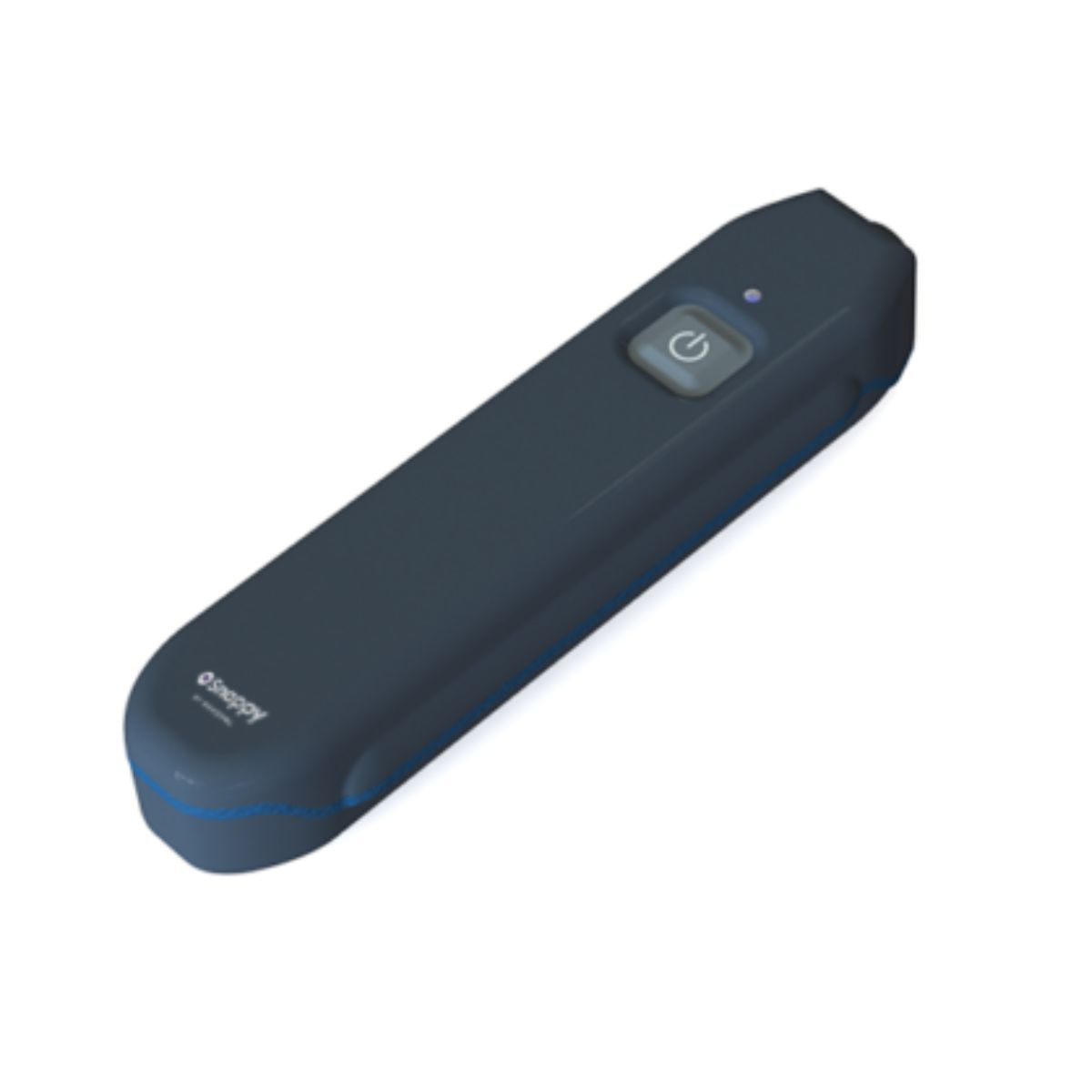

NSnappy Sense IR LWEU-N Infrared Food Service Thermometer Sensor

Wireless Professional Catering Infrared Food Service Temperature Sensor

The NSnappy Sense IR is a wireless infrared food thermometer designed for swiftly measuring the surface temperature of food products. It is food-safe, reliable, and automatically transmits measurement data via LoRaWAN radio connection to the NSnappy service.

The device operates with a battery for over a year under normal use and is covered by the NSure ongoing warranty for IoT measuring devices, including regular calibration and battery replacement.

Key benefits include:

• The infrared thermometer gives a fast response time
• Automatic transmission of measurement data
• Easy to use
• Food safe
• No mobile app or Bluetooth required
• Works with all devices with an internet connection and access to the NSnappy service via a browser
• Ideal for commercial kitchens, industry and food safety

Specifications of The Food Infrared Thermometer

Environment

• Storage: -40…+60°C, relative humidity 5-95%, non-condensing
• Operating conditions: -20…+45°C, relative humidity 5-95%, non-condensing
• Protection class: IP65
• Case material: PC+ABS (Bayblend® T88-4N)

Dimensions

• Dimensions: 119 x 28 x 23 mm

Infrared Temperature Measurement

• Sensor: Gradient-compensated thermoelectric battery-type infrared sensor with integrated optics
• Measuring angle: 12°, appropriate measuring distance 5…20 cm
• Emissivity: Preset 0.95
• Measuring range: -70…+380°C
• Accuracy:
  ±1 °C in the range -20…+100°C, when the device temperature is stable between +5…+45°C
  ±2 °C in the range -40…+120°C, when the device temperature is stable between +5… +45°C
• Measuring time: About 5 seconds

Radio Connection

• Description: LoRaWAN standard, EU 868 MHz frequency range
• Transmitter module: Murata ABZ-093 LoRaWAN modem
• Antenna: Internal
• Compatibility: A device with a LoRaWAN radio connection needs an NSnappy® Hub LoRaWAN base station and the NSnappy® platform service to work
• Frequency: 863-870 MHz (LoRaWAN 1.0.2 EU band)
• Current: Max +14 dBm ERP
• Range: Depends on the environment, indoors: hundreds of meters in good conditions, outdoors: line of sight up to 10 km

Power Supply

• Type: 3.6 V lithium thionyl chloride primary battery, not user replaceable
• Battery life: At least one year when used 20 min/day

Applications and Uses for the IR Food Temperature Sensor

The NSnappy Sense IR food temperature sensor is suitable for various applications, including receiving inspections and measuring serving temperatures in food production, catering, and food service industries. Its uses include swiftly and accurately measuring the surface temperature of food products, contributing to food safety and quality control.

Call us at 01628 778788 or email sales@processparameters.co.uk to discuss your needs today.
